Product Description

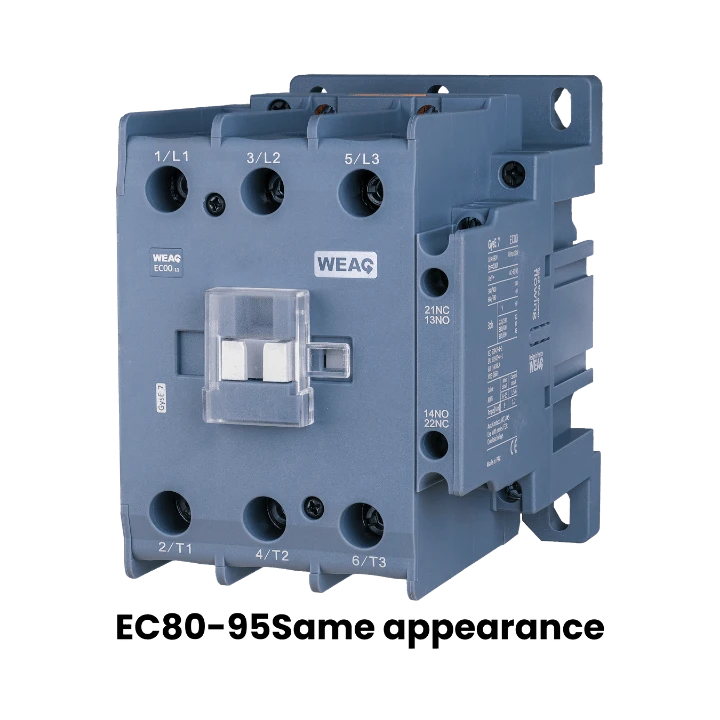

● Qauv TSIS MUAJ: EC80(x)
● Txuj: IEC60947-5-1, IEC60947-4-1
● Rated tam sim no: 80A
● Rated ua hauj lwm voltage: 220V ~ 690V
● Rated rwb thaiv tsev voltage: 690V
● Tus naj npawb ntawm tus ncej: 3P
● Tus pab tiv tauj: 1NO+1NC
● Kev siv qeb: AC3, AC4
● Txoj kev txhim kho: DIN-rail lossis ntsia hlau ntsia
Taw qhia
EC80(x) yog ntau yam hluav taws xob hloov hluav taws xob tshwj xeeb tsim los rau kev tswj tau zoo thiab hloov hluav taws xob hnyav hauv kev lag luam thiab chaw lag luam. Nrog nws cov yam ntxwv siab heev thiab kev tsim kho zoo, nws muaj kev ua tau zoo dua qub thiab kev ntseeg tau zoo dua piv rau cov khoom siv ib txwm siv.
Featuring lub compact tsim, EC80(x) suav nrog ib co coil, hu, actuator, thiab auxiliary contacts, muab kev daws teeb meem rau ntau yam kev siv. Ib qho txiaj ntsig tseem ceeb ntawm EC80(x) yog nws qhov kev ua tau zoo dua hauv kev tuav cov dej ntws siab, tso cai rau kev tsim seamless lossis cuam tshuam ntawm cov hluav taws xob circuits rau cov khoom sib txuas.
Lub EC80(x) nthuav tawm ib qho kev hloov kho tshiab rau LC1D80 Din rail Contactor, muab kev ua haujlwm zoo tshaj thiab hloov tau. Thaum lub zog tswj tau siv, lub kauj nyob rau hauv EC80 (x) magnetic contactor yog energized, generating ib tug haib magnetic teb uas zoo attracts tus actuator. Yog li ntawd, cov neeg sib cuag tau nrawm thiab raug hloov ntawm qhov qhib thiab kaw txoj haujlwm.
Qhov kev hloov hluav taws xob siab tshaj plaws no pom kev siv dav hauv kev tswj cov motors, teeb pom kev zoo, cov khoom cua sov, thiab ntau yam khoom siv hluav taws xob hnyav. Nws muaj ntau yam qauv tsim ua rau nws ua tau raws li qhov sib txawv ntawm qhov voltage thiab tam sim no, kom ntseeg tau tias muaj kev sib raug zoo nrog ntau yam kev siv.
Thaum koom ua ke nrog kev tswj hwm cov khoom siv ntxiv xws li thermal overload relays lossis lub cev muaj zog pib, EC80(x) muab kev tiv thaiv thiab kev tswj hwm, ua kom muaj kev nyab xeeb thiab ua haujlwm zoo ntawm cov tshuab hluav taws xob. Nws ua raws li cov qauv kev lag luam, suav nrog IEC60947-5-1 thiab IEC60947-4-1, ua kom ntseeg tau thiab ua raws li cov cai tswj kev nyab xeeb hluav taws xob.
Zuag qhia tag nrho, EC80(x) electromagnetic hloov pauv yog siv los hloov LC1D80 Din rail Contactor, kev siv thev naus laus zis uas muaj kev txhim kho kev ua tau zoo, ntau yam, thiab muaj zog rau kev tswj cov hluav taws xob hnyav hauv kev lag luam thiab kev lag luam ib puag ncig. Nws ua haujlwm tau zoo, sib raug zoo nrog ntau yam kev siv, thiab kev ua raws li cov qauv kev nyab xeeb ua rau nws nyiam xaiv rau cov tshuab hluav taws xob niaj hnub.
Feature
● Nqi-zoo Sib Nqus AC Contactor muab tus nqi pheej yig.
● Ntxiv kev xaiv ntawm tus txheej txheem pab tiv tauj kom tau raws li ntau hom kev thov.
● Tsim nyog rau kev hloov pauv ntawm qhov hluav taws xob tseem ceeb, ua kom cov khoom siv ruaj khov.
● Exceptional adaptability rau ib puag ncig tej yam kev mob, kom ntseeg tau kev lag luam txawm nyob rau hauv huab ib puag ncig.
Technical Data
|
Qauv |
EC80 (x) |
||
|
Ncej |
3P |
||
|
Rated rwb thaiv tsev voltage (Ui) |
V |
690 |
|
|
Rated ua haujlwm voltage (Ue) |
V |
380/400, 660/690 |
|
|
Rated thermal tam sim no (Ith), AC -1 |
125 |
||
|
Rated ua haujlwm tam sim no (Ie) |
AC -3, 380/400V |
A |
80 |
|
AC -3, 660/690V |
49 |
||
|
AC -4, 380/400V |
37 |
||
|
AC -4, 660/690V |
17.3 |
||
|
Rated ua haujlwm fais fab (Pe) |
AC -3, 380/400V |
kW |
37 |
|
AC -3, 660/690V |
45 |
||
|
AC -4, 380/400V |
18.5 |
||
|
AC -4, 660/690V |
15 |
||
|
Neeg kho tshuab lub neej |
×104 sij hawm |
650 |
|
|
Hluav taws xob lub neej |
AC -3 |
65 |
|
|
AC -4 |
11 |
||
|
Ntau zaus ntawm kev ua haujlwm |
AC -3 |
Sijhawm/teev |
600 |
|
AC -4 |
300 |
||
Coil yam ntxwv
|
Qauv |
EC80 (x) |
||
|
Rated tswj voltage (Us) |
50Hz, 50/60Hz |
V |
24, 36, 48, 110, 127, 220/230, 240, 380/400, 415, 440 |
|
Kev ua haujlwm ntau |
Kev ua haujlwm voltage |
V |
(85% ~ 110%) Peb |
|
Tshem tawm voltage |
(20% ~ 75%) Peb |
||
|
Coil zog |
Nyob rau hauv maj |
VA |
200 |
|
Muab kaw |
15-20 |
||
|
Hwj chim |
W |
6-10 |
|
Sib cuag
|
Auxiliary contacts specification |
A |
11 |
|
|
Rated thermal tam sim no (Ith) |
A |
10 |
|
|
Rated ua haujlwm voltage (Ue) |
AC |
V |
380 |
|
DC |
220 |
||
|
Rated tswj muaj peev xwm |
AC -15 |
VA |
360 |
|
DC -13 |
W |
33 |
|
