Khoom Description

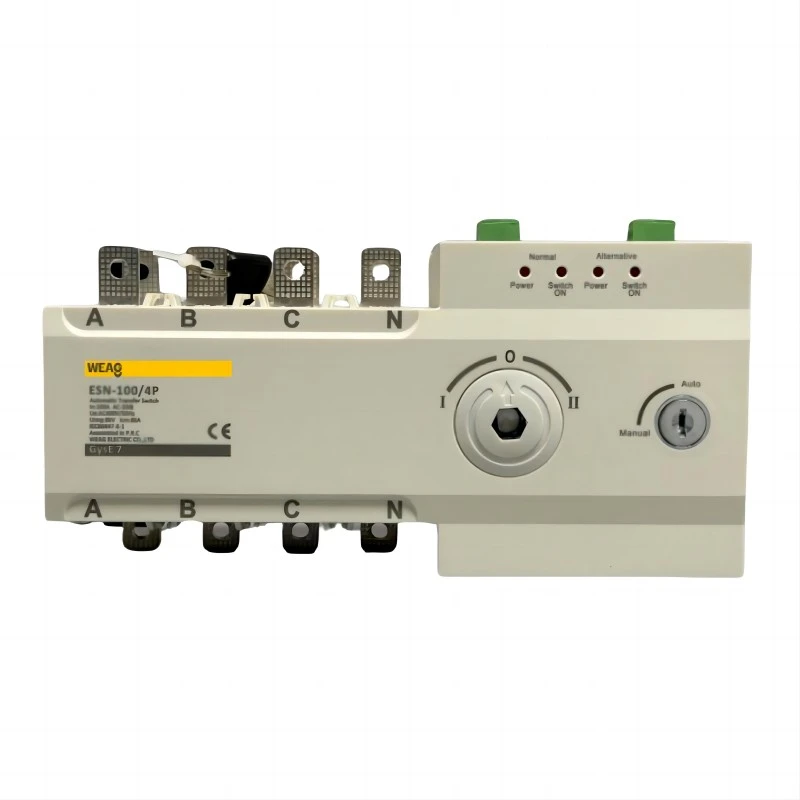

● Qauv TSIS MUAJ: ESN-100 Tsis Siv Neeg Hloov Hloov Hloov
● Chav Kawm PC
● Rated Tam sim no: 100A
● Ua Haujlwm Voltage: 400VAC
● Ncej Number: 4P
● Tsis siv neeg hloov pauv lossis ua haujlwm manually los ntawm kov
● Cov xwm txheej qhia txog txoj haujlwm
● Generator pib txiav
● Hluav taws kub tswj tswj
● Txuj: IEC60947-6-1
Taw qhia
ESN series 100A 4P Auto Transfer Switch (ATS) yog ib qho cuab yeej siv hauv cov tshuab hluav taws xob hluav taws xob kom tau txais kev hloov hluav taws xob los ntawm thawj qhov chaw mus rau qhov chaw thib ob hauv qhov xwm txheej tsis ua haujlwm lossis cuam tshuam. Nws yog feem ntau siv rau hauv cov ntawv thov uas tsis muaj kev cuam tshuam lub zog yog qhov tseem ceeb, xws li cov chaw khaws ntaub ntawv, tsev kho mob, lossis cov chaw tsim kho tseem ceeb.
ESN series 100A 4P Auto Transfer Switch (ATS) yog tsim tshwj xeeb rau kev siv nyob rau hauv parallel redundant fais fab system, qhov twg ntau lub zog hluav taws xob sib txuas ua ke los muab kev rov ua dua thiab nce kev ntseeg tau. Hauv cov kab ke no, ATS saib xyuas lub hauv paus fais fab thiab hloov mus rau qhov chaw hluav taws xob thib ob yog tias nws pom qhov tsis ua haujlwm lossis qhov txawv txav hauv lub hauv paus.
ESN series 100A 4P Auto Transfer Switch (ATS) feem ntau muaj cov yam ntxwv siab heev thiab kev ua haujlwm kom ntseeg tau tias muaj kev hloov pauv hluav taws xob zoo thiab muaj txiaj ntsig. Lawv suav nrog cov yam ntxwv xws li kev txawj ntse built-in rau kev saib xyuas thiab tswj cov khoom siv hluav taws xob, cov xwm txheej qhia txog kev ua haujlwm, lub tshuab hluav taws xob pib ua haujlwm, tswj hluav taws tua hluav taws thiab lwm yam.Nws ua raws li IEC60947-6-1.
Kev ua haujlwm li qub
● Qhov siab yuav tsum tsis pub tshaj 2000 meters.
● Qhov ntsuas kub ib puag ncig ntawm -5 degree txog 40 degree .
● Cov huab cua tus txheeb ze av noo yuav tsum tsis pub tshaj 95%.
● Yuav tsum tsis txhob muaj cov khoom tawg lossis corrosive uas tuaj yeem ua rau cov hlau puas lossis rwb thaiv tsev vim muaj roj lossis hmoov av.
● Qhov chaw teeb tsa yuav tsum ruaj khov thiab tsis muaj qhov tseem ceeb ntawm kev co lossis kev vibrations.
● Ib puag ncig yuav tsum tau tiv thaiv los ntawm nag thiab daus.
Nco tseg:Yog tias qhov ntsuas kub nyob nruab nrab ntawm qhov ntsuas -5 degree ~ 40 degree, thov hu rau WEAG pab pawg.
Technical Data
|
Hom |
ESN -100 |
|
Rated tam sim no (A) |
100 |
|
Rated ua hauj lwm tam sim no (le) |
16-100A |
|
Rated rwb thaiv tsev voltage (Ui) |
800V |
|
Rated Impulse Nrog Voltage (Uimp) |
8 kvu |
|
Rated Ua Haujlwm Voltage (Uw) |
AC 400 V |
|
Siv Qeb |
AC -33B |
|
Rated txwv luv luv Circuit Court tam sim no |
8 KA |
|
Rated luv-lub sij hawm tiv taus tam sim no |
5kA / 30ms |
|
Hloov sijhawm |
Tsawg dua los yog sib npaug li 5s |
|
Tswj lub zog hluav taws xob |
AC 220 V |
