Product Description
● Qauv TSIS MUAJ: ET63
● Ncej naj npawb: 2P
● Txuj: IEC61095, IEC60947-4-1
● Rated tam sim no: 32 ~ 63A
● Rated ua haujlwm voltage: 250V, 2P (2NO, 2NC, 1NO+1NC)
● Coil Volatge: 12V, 24V, 48V, 110V, 230V AC / DC
● Kev Siv Qeb: AC-1, AC-3, AC-7a, AC-7b
● Txoj Kev Tswj: Tsis Siv Neeg
● Mounting: 35mm Din rail
Taw qhia

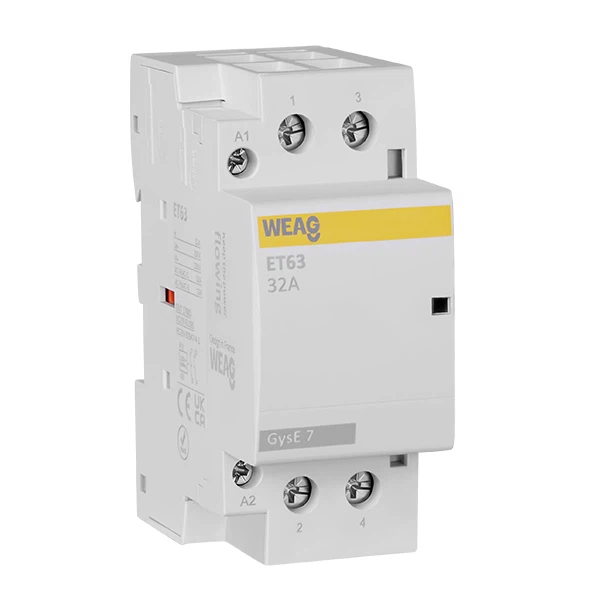

ET63 series 40A 50A 63A Auto Contactor, muaj nyob rau hauv 2P (ob tug ncej) teeb tsa nrog kev ntsuas tam sim no ntawm 40A, 50A, thiab 63A, ua cov khoom siv hluav taws xob tseem ceeb rau kev tswj thiab hloov hluav taws xob circuits. Cov contactors no tau siv dav hauv cov hluav taws xob faib hluav taws xob thiab cov khoom siv hluav taws xob kom tswj tau zoo thiab tswj cov hluav taws xob ntws mus rau ntau hom kev thauj khoom thiab khoom siv.
Ib qho tseem ceeb ntawm ET63 series 40A 50A 63A Auto Contactor yog lawv ua raws li cov qauv kev lag luam nruj, ua kom pom kev ua haujlwm zoo, kev nyab xeeb, thiab kev sib raug zoo. Cov contactors no ua tau raws li qhov yuav tsum tau ua nruj me ntsis los ntawm cov qauv kev lees paub xws li IEC61095 thiab IEC60947-4-1, ntxiv rau lawv qhov kev ntseeg tau thiab tsim nyog rau kev sib txuas seamless rau hauv ntau lub tshuab hluav taws xob.
ET63 series 40A 50A 63A Auto Contactor khav theeb tsim qauv, ua rau lawv muaj ntau yam thiab tsim nyog rau kev teeb tsa nrog qhov chaw txwv. Lawv qhov loj me tsis cuam tshuam rau lawv qhov kev ua tau zoo, vim tias lawv muaj peev xwm ua tau zoo tuav cov khoom siv hluav taws xob xav tau. Qhov kev ua tau zoo no tso cai rau lawv ua haujlwm zoo hauv kev tswj teeb pom kev zoo, cua sov tshuab, lub cev muaj zog, thiab lwm yam kev siv hluav taws xob.
Ntxiv nrog rau lawv cov qauv tsim thiab kev ua tau zoo, ET63 series 40A 50A 63A Auto Contactor tuaj yeem nruab nrog cov neeg pab cuam, muab kev ua haujlwm zoo dua qub rau kev tswj xyuas ntxiv thiab kev taw qhia lub hom phiaj. Cov kev pabcuam pabcuam no muab kev hloov pauv ntau dua hauv kev tswj cov hluav taws xob circuits, txuas ntxiv nthuav cov peev txheej ntawm cov contactors.
Kev teeb tsa ntawm ET63 series 40A 50A 63A Auto Contactor tau yooj yim los ntawm lawv cov kev sib raug zoo nrog DIN rail mounting. Cov yam ntxwv no ua kom muaj kev sib koom ua ke yooj yim rau hauv cov khoom siv hluav taws xob, txuag lub sijhawm thiab kev siv zog thaum lub sijhawm teeb tsa. Thaum ntsia, cov contactors no xa cov kev ua tau zoo thiab muaj txiaj ntsig zoo, tswj cov hluav taws xob hluav taws xob zoo thiab pab txhawb rau tag nrho kev ua haujlwm thiab kev ua haujlwm ntawm lub cev.
Feature
● Sleek Design: ET63 modular contactors yog crafted nrog rau qhov chaw-npaum configuration, tso cai rau qhov chaw-conserving installation nyob rau hauv hluav taws xob panels los yog switchboards.
● High Current Handling: Cov contactors no muaj peev xwm tswj tau cov hluav taws xob tam sim no, ua rau lawv tsim nyog rau cov ntawv thov uas xav tau cov khoom siv hluav taws xob.
● Coil Voltage Alternatives: ET63 modular contactors muaj kev xaiv sib txawv rau coil voltage, ua kom muaj kev sib raug zoo nrog ntau lub tshuab tswj thiab ua tau raws li qhov yuav tsum tau muaj qhov sib txawv.
● Cov Ntsiab Lus Sib Txuas Ntxiv: Lawv tuaj yeem suav nrog cov ntsiab lus sib txuas ntxiv uas ua rau muaj kev tswj xyuas ntxiv lossis teeb tsa ua haujlwm, xws li kev qhia txog xwm txheej lossis cuam tshuam nrog lwm yam khoom siv.
● Mounting Flexibility: ET63 modular contactors feem ntau yog tsim los rau kev yooj yim installation thiab kev koom ua ke rau hauv hluav taws xob faib tshuab, muab ntau yam kev xaiv mounting.
● Txhim khu kev ua tau zoo: Cov contactors no tau tsim los ua kom muaj kev ua haujlwm zoo ib yam thiab muaj kev ntseeg siab, ua kom muaj txiaj ntsig zoo thiab ruaj ntseg ntawm cov hluav taws xob circuits.
Technical Data
|
Rated ua haujlwm voltage (Ue) |
1P, 2P |
250VAC ua |
|
Tus naj npawb ntawm cov neeg tseem ceeb |
2P (2NO, 2NC, 1NO+1NC) |
|
|
Ntau zaus |
50/60Hz |
|
|
Rated rwb thaiv tsev voltage (Ui) |
500V AC ua |
|
|
Chev Voltage |
12V, 24V, 48V, 110V, 230V AC / DC |
|
|
Kev siv qeb |
AC-1, AC-3, AC-7a, AC-7b |
|
|
Rated impulse withstand voltage (Uimp) |
2.5kV (4kV rau 12/24/48VAC) |
|
|
Neeg kho tshuab lub neej |
1,000,000 cycles |
|
|
Hluav taws xob lub neej |
100, 000 cycles |
|
|
Ntau tshaj qhov hloov pauv ua haujlwm ib hnub |
100 |
|
|
Pollution degree |
2 |
|
|
Kev tiv thaiv qib (IEC 60529) |
IP20 |
|
|
Ua haujlwm kub |
-5 degree ~ +60 degree |
|
|
Cia kub |
-40 degree ~ +70 degree |
|
|
Mounting |
35mm Din rail |
|
Lus nug thiab lus teb
